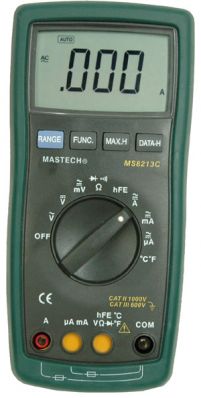

Unique sliding jack protection system covers incorrect banana jacks as function is selected. Only the correct jacks are exposed to accept test leads as function switch is turned. For example, when voltage, ohms or capacitance are selected, the current jacks are closed/covered. When current is selected, voltage is closed/covered.
Features
- Auto and Manual range selection
- Large, easy-to-read LCD display
- Secondary injection molded rugged case
- High quality test leads with detachable storage unit on back of meter
- Diode Test, Data Hold/Max, Auto-off and Continuity Check
- Dimensions: 185 (L) x 87 (W) x 53 (H) mm
- Weight: 360 g included 3 AAA batteries
- Transistor Test (hFE) capability
- DC Voltage: 20mV, 200mV, 2V, 20V, 200V 1000V ranges
- AC Voltage: 20mV, 200mV, 2V, 20V, 200V, 750V ranges
- AC/DC Current: 200uA, 2000uA, 20mA, 200mA, 2A, 10A ranges
- Resistance: 6 ranges to 20M
