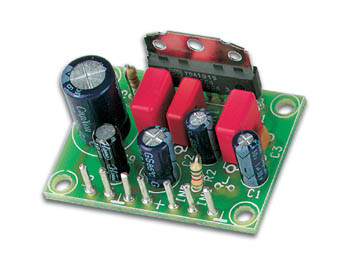

Small PCB for both pre-amplifier and power amplifier, which may be used separately. No adjustments required. Short circuit protection.
Specifications
- power supply: 4.5 to 15V DC
- input sensitivity:
- power amplifier: 150mV / 20Kohm
- pre-amplifier: 20mV (12V) / 200Kohm
- frequency output: 60Hz to 15kHz
- output power: 2.5W max. (4ohm / 12V)
- dimensions: 1.7" x 1.3" x 1.1"
- recommended transformer: -
- recommended housing: -
