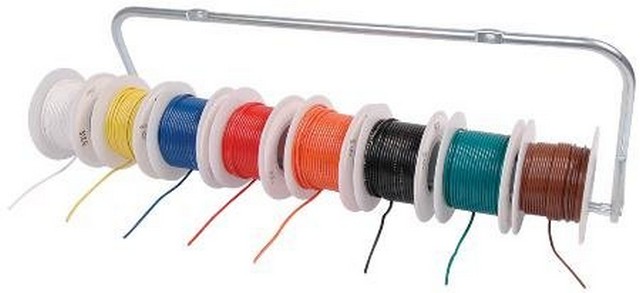

- 200' stranded hook up wire on a dispenser rack
Stranded hook-up wire kit with rack dispenser for point-to-point wiring. Perfect for internal, 300V, point-to-point wiring of electrical and electronic equipment, meters, computers, business machines, appliances and control panels.
- Spools: 8x 25ft
- Conductor Gauge: 22AWG
- Jacket Colors: White, Yellow, Blue, Red, Orange, Black, Green, Brown
- Rack is also available separately without the wire # 24-15035 see picture above
- Create your own wire dispenser
22 AWG (7 x 30) Stranded Tinned Copper Wire
- Stranded Tinned Copper Wire Conductor per ASTM B-33
Insulation:
- UL 1007 color coded PVC
- Temperature: -40° to +80°C
- UL 1569 color coded PVC
- Temperature: -40°C to +105°C
- Voltage Rating: 300 volts
Applications:
- Stranded Copper Wire UL Style 1007 / UL Style 1569 80°C / 105°C 300 Volt Hook-Up Wire
- Internal wiring of meters, panels, electrical and electronic equipment
Industry Approvals:
- UL Style 1007
- UL Style 1569
- CSA-TR-64
- RoHS Compliant
- OSHA acceptable
