STELLAR LABS 24-14685 Hook-Up Wire Rack with 5 x100ft Spools of 22AWG STRANDED

SKU: 24-14685

Price:

$109.97

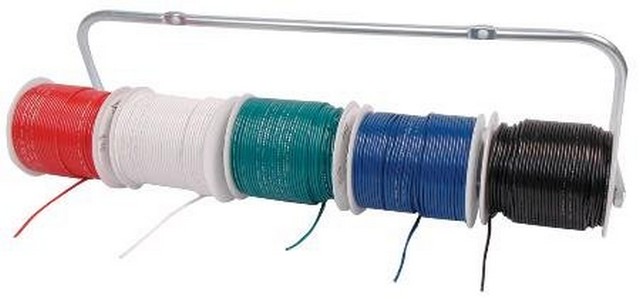

500' stranded hook up wire on a dispenser rack

Stranded hook-up wire kit with rack dispenser for point-to-point wiring. Perfect for internal, 300V, point-to-point wiring of electrical and electronic equipment, meters, computers, business machines, appliances and control panels.

Spools: 5x 100ft
Conductor Gauge: 22AWG
Jacket Colors: White, Blue, Red, Black, Green
Rack is also available separately without the wire # 24-15035 see picture above

Create your own wire dispenser

Conductor:

22 AWG (7 x 30) Stranded Tinned Copper Wire
Stranded Tinned Copper Wire Conductor per ASTM B-33

Insulation:

UL 1007 color coded PVC
Temperature: -40° to +80°C
UL 1569 color coded PVC
Temperature: -40°C to +105°C
Voltage Rating: 300 volts

Applications:

Stranded Copper Wire UL Style 1007 / UL Style 1569 80°C / 105°C 300 Volt Hook-Up Wire
Internal wiring of meters, panels, electrical and electronic equipment

Industry Approvals:

UL Style 1007
UL Style 1569
CSA-TR-64
RoHS Compliant
OSHA acceptable
