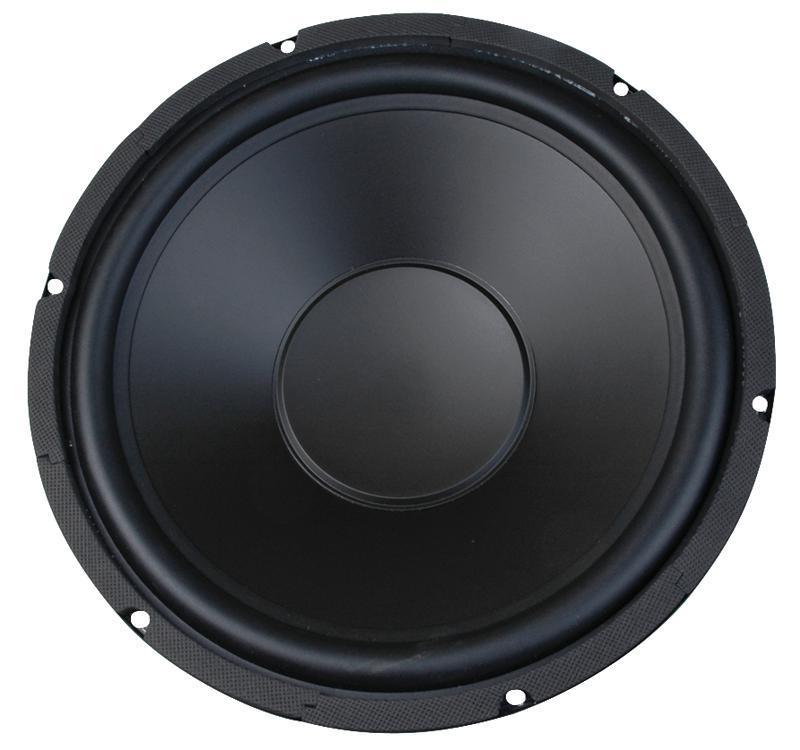

2" Polypropylene Cone Woofer (single)
Low cost general replacement woofer is ideal in a two way cabinets or as a compact subwoofer. It is perfect for a wide variety of home or autosound applications and is ideal for either ported or sealed enclosures.
- Nominal Diameter: 12 inch
- Rated Impedance: 4Ohm
- Operating Bandwidth: 50 ~ 4KHz (-3dB)
- Power Handling Capacity: 120W RMS
- Sensitivity (1W/M): 91dB (±3dB)
- Voice Coil Diameter: 1.5 inch
- Resonance Frequency Fs: 42.0Hz
- DC Resistance Re: 3.4Ohm
- Mechanical Q Factor Qms: 3.345
- Electrical Q Factor Qes: 0.5324
- Total Q Factor Qts: 0.4593
- Equivalent Cas air load Vas: 122.6 L
- Surface Area of Cone Sd: 0.0531 m2
- Efficiency Bandwidth Product EBP 78
- Voice Coil Over Hang X-max 5 mm
- Cutout: 10.94"
- Mounting Depth: 5.04"
- Basket: Pressed steel chassis
- Magnet Type: 30.0 oz.
- Cone Material: Polypropelyne
- Surround: Rubber
- Dust Cap: Polypropelyne
- Damper: Cloth
- General Specifications:
Thiele-Small Parameters:
Physical Information:
