HDMI 4x4 Matrix Selector - with 3D Support

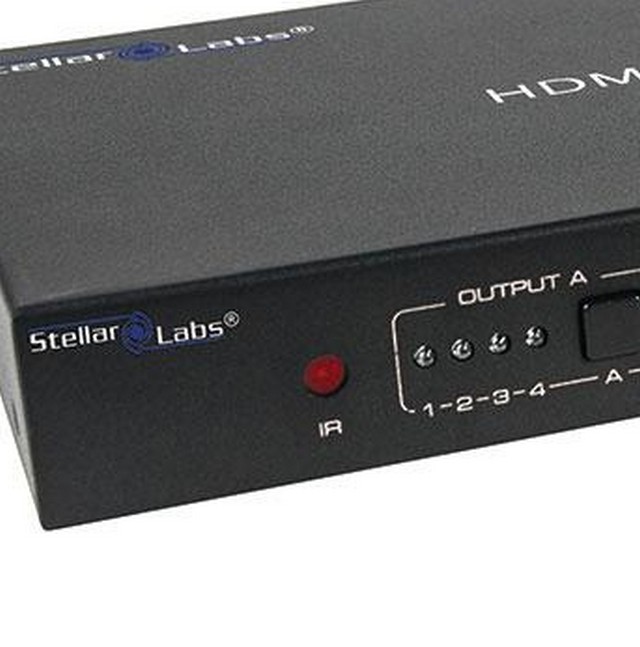

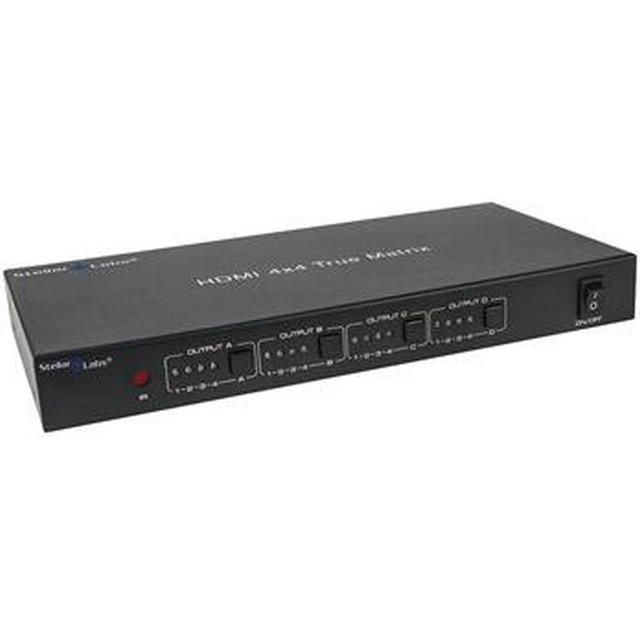

This high quality selector allows four video monitors to independently select from up to four high definition HDMI A/V sources. Independent front panel push button controls for each monitor output provide LED indication of the source selected. This matrix also features an RS232 port for external controller connection.

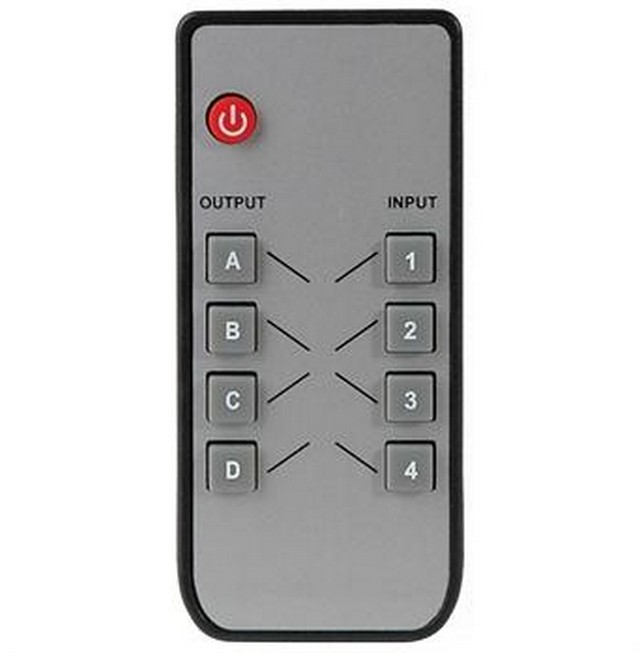

- IR remote control
- RS232 Port
- IR Extension Port

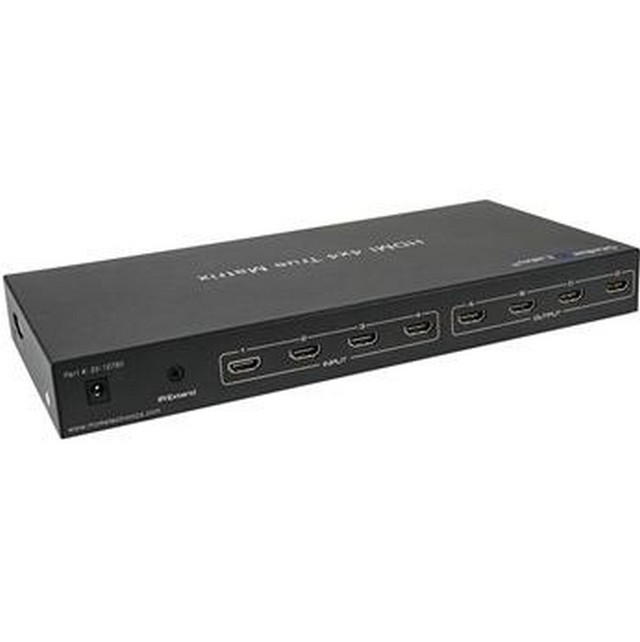

- Four HDMI inputs
- Four HDMI outputs
- Dip switch selectable (detailed in manual)
- Rugged metal enclosure
Product Features:
Product Specifications:
- HDMI Resolution: Up to 1080p and 3D
- Video Color Format: Up to 36 bit
- Audio Format: DTS-HD, Dolby-trueHD, LPCM7.1, DTS, Dolby-AC3, DSD
- Max Baud Rate: 6.75 GPS
- Power Input: 5V 1.5A
- Dimensions: 12.1" x 6" x 1.4"
- Weight: 2.7 lbs.
