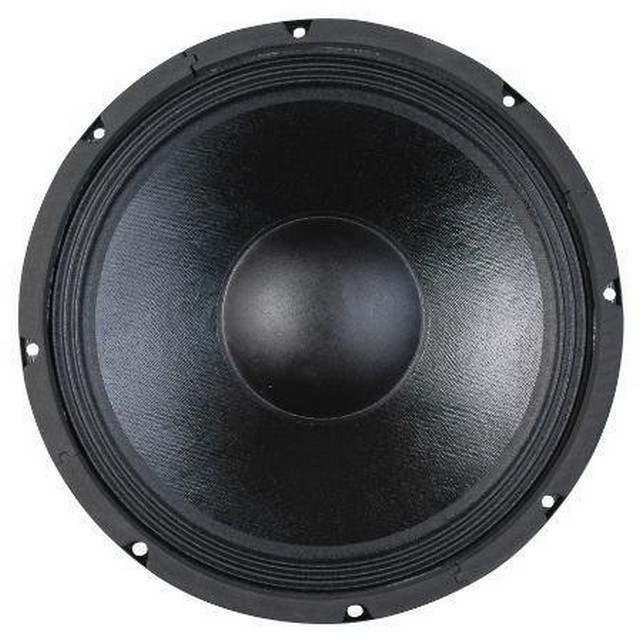

12 Inch Woofer 175W Rms 8 Ohm Paper Cone and Cloth Surround
- 12" Paper Cone and cloth surround Woofer (single)
- Low cost general replacement woofer is ideal in a two way cabinets or as a subwoofer. It is perfect for prosound applications and is ideal for either ported or sealed enclosures
General Specifications:
- Cutout: 10.87"
- Mounting Depth: 5.04"
- Nominal Diameter: 12 inch
- Rated Impedance: 8 ohms
- Operating Bandwidth: 38Hz ~ 2.5KHz
- Power Handling Capacity: 175W RMS
- Sensitivity (1W/M): 97 dB
- Voice Coil Diameter: 2.5 inch
- Overall frame diameter: 12.20"
Thiele-Small Parameters:
- Resonance Frequency Fs: 38 Hz
- DC Resistance Re: 7.2 ohm
- Mechanical Q Factor Qms: 2.8
- Electrical Q Factor Qes: 0.385
- Total Q Factor Qts: 0.34
- Equivalent Cas air load Vas: 108.0 liters
- Coil Inductance Le: 0.923 mH
- Efficiency Bandwidth Product EBP 98.70
- Voice Coil Over Hang X-max 3.75mm
Physical Information:
- Cutout: 10.87"
- Mounting Depth: 5.04"
- Basket: Stamped Steel
- Magnet Type: 50 OZ
- Cone Material: Non-pressed paper
- Surround: Cloth
- Dust Cap: Paper
- Damper: Cloth
- Weight: 9 lbs.
