MCM-50-6200 Five-Way Speaker Switch Box with Headphone Jack
SKU: MCM-50-6200
Stock: 0
Five Way Speaker Selector w/Headphone Jack

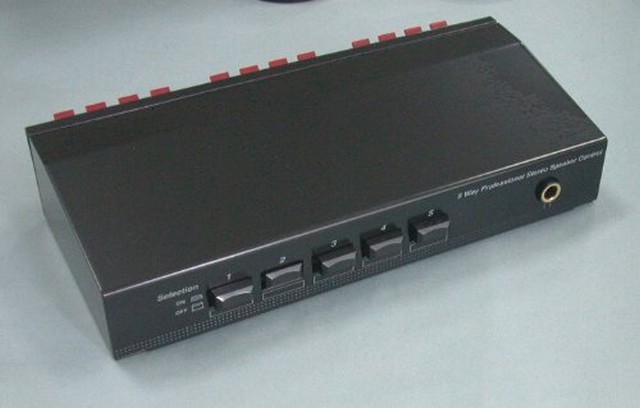

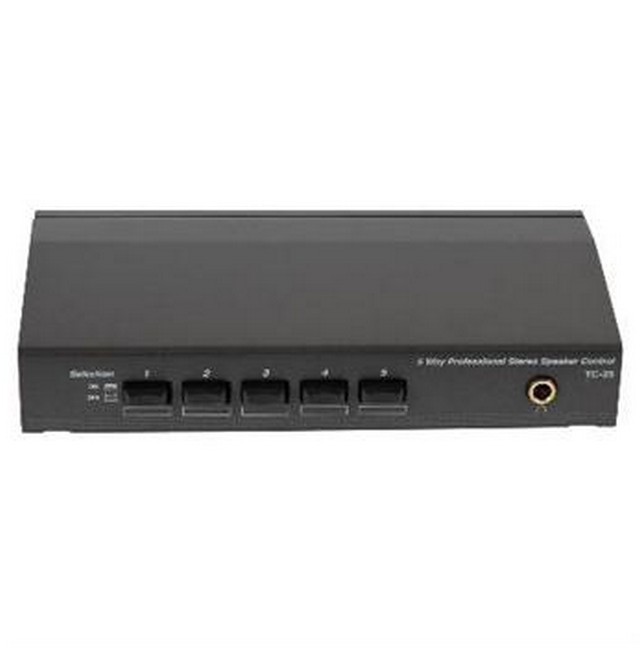

Tabletop control box allows selection of up to five speaker pairs. Internal 100Ω resistors ensure that amplifier always sees a load, even with all switches off. Progressive switched resistor network ensures that a minimum of 8ohm load is seen by the amplifier (when 8Ω speakers are used), regardless of speakers selected.
Sloped front

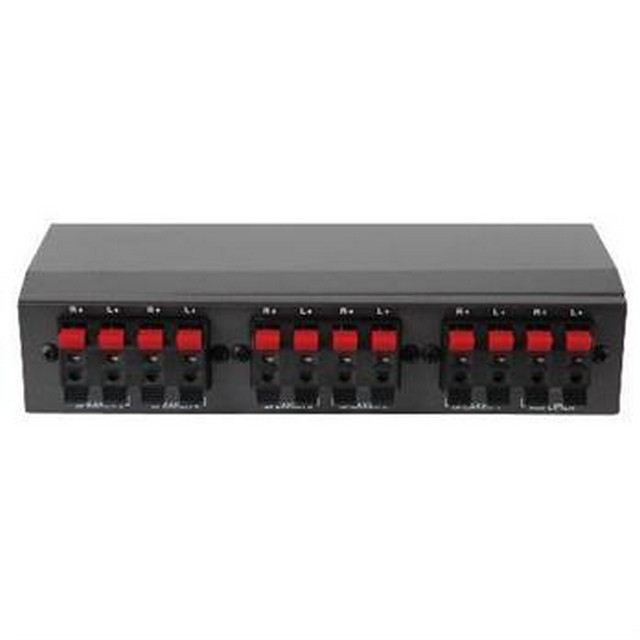

Color coded push terminal speaker connections
Metal case
Non skid rubber feet
Front panel ¼" headphone jack
Specifications:
Power capacity: 200W Max, both channels combined
Dimensions: 8⅛" (W) x 2¼" (H) x 3⅝" (D).
Color: Black
Sloped front
Color coded push terminal speaker connections
Metal case
Non skid rubber feet
Front panel ¼" headphone jack
Weight: 1.4375 lbs.
Hazardous: No
RoHS Comp: No
Warranty: 90 days
Length: 10 in.
Width: 9 in.
Height: 2.5 in.
