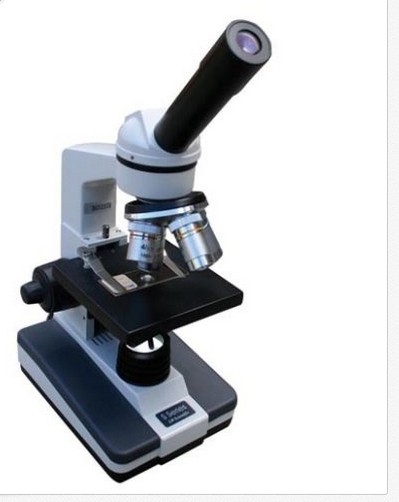

LW SCIENTIFIC EDM-M03D-DAF1 STUDENT-Research Microscope Florescent 3 Objective
- Student Microscope
- Monocular
- 3 Objectives
- Fluorescent Illumination
- 4X, 10X, 40XR
Product Description
This student microscope has everything necessary for the middle school or high school classroom. This is a proven design with student proof features such as locked-in eyepieces, and a durable disk diaphragm. Clear DIN optics (DIN Achromatic Objectives: 4X, 10X, 40XR), coarse and fine focus, fluorescent illumination and stage options make this scope a guaranteed winner. One year warranty on electronic components; lifetime warranty on materials and workmanship. Included accessories: One fuse, Dust cover, Spare bulb, Manual, and Warranty card.
HEAD
Standard monocular head
Bearing mounted, rotates 360°
10X/18 wide field eyepiece
Locked-in eyepiece with pointer installed
Teaching head available
CONSTRUCTION
Heavy cast alloy Head Objectives
Acid and reagent resistant finish
All metal gearing
OBJECTIVES
Triple nosepiece
DIN Achromatic 4X, 10X, 40XR (retractable)
Parfocal and parcentric
Color coded
STAGE
Pre-drilled and tapped for optional mechanical
stage
Spring-loaded slide clips included
Stage size: 110mm x 110mm
•Cost-Effective Bid Scope
•Disk Diaphragm
DIMENSIONS AND WEIGHT
Height: 14” (356mm)
Length: 7.0” (178mm)
Width: 5.25” (134mm)
Weight: 6.1 lbs. (2.8kg)
ILLUMINATION
NA 0.65 condenser
Five position disk diaphragm
Standard 5w fluorescent
Rechargeable LED bases available
Input 110V (220V optional)
•Triple Nosepiece
ADJUSTMENT CONTROLS
Coarse and fine focus with tension adjustment
Adjustable stage stop
WARRANTY
One year on materials and workmanship
One year on electronic components
