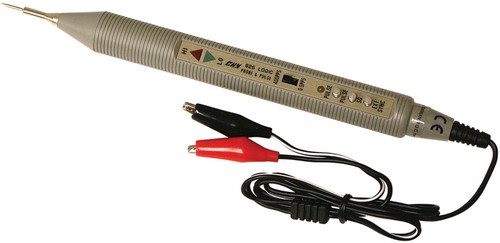

Two-in-One Logic Probe and Pulser That Simplifies Troubleshooting and Analyzing Digital Circuits Frequency Response 50MHz Detectable Pulse Width 10ns
LP900-625 Specifications ------> Logic Probe
* Frequency Response 50MHz
* Detectable Pulse Width 10ns
* Logic Threshold TTL Hi 3V, Lo 0.75V
* Input Impedance CMOS Hi 60% Vcc, Lo 15% Vcc
* Operating Supply Voltage 4-18V
* Max. Input Protection ±70VAC/DC @ 15s
* Power Supply Protection ±20V
LP900 Specifications ------> Logic Pulser
* Pulse Repetition Rate 0.5/400Hz
* Pulse Width 10µs
* Output Current: * Pulser Mode @ 0.5Hz 100mA sink.source
* Square Wave Mode @ 500Hz 5mA sink/source
* Sync Input Impedance 1MÙ
* Operating Supply Voltage 5-15V
* Max. Sync Input Protection ±120Vdc @ 30s
* Output Protection ±35VDC @ 30s
