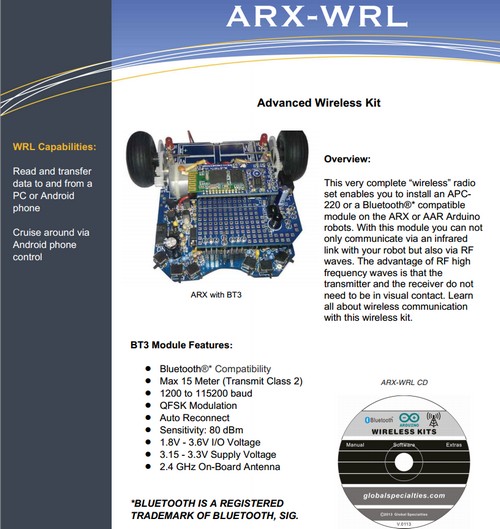

Global Specialties ARX-WRL ARX Advanced Wireless Kit
Product Description

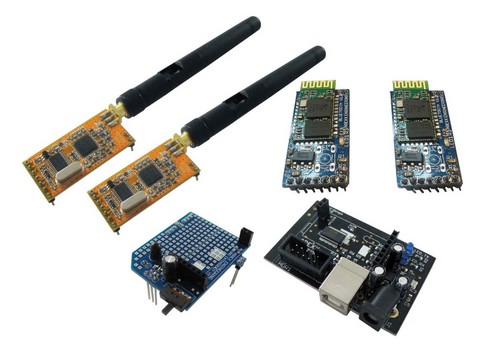

This very complete "wireless" radio set from Global Specialties enables you to install an APC-220 or a 2.4 GHz module on the ARX-ASURO or AAR Arduino robots. This module not only allows to communicate via an infrared link with robot but also via RF waves. The advantage of RF high frequency waves is that the transmitter and the receiver do not need to be in visual contact. Learn all about wireless communication with this wireless kit.
Product Features
- Bluetooth compatible
- Communication via infrared and RF waves
- Maximum 120 meters at 1200 baud
- 1200 to 57600 baud (UART)
- 1200 to 19200 baud (AIR)
PRODUCT FEATURES

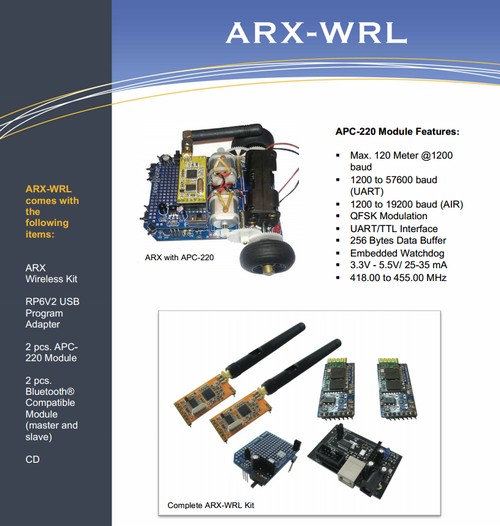

APC-220 Module
- Max. 120 meter @ 1200 baud
- 1200 to 57600 baud (UART)
- 1200 to 19200 baud (AIR)
- QFSK modulation
- UART/TTL interface
- 256 bytes data buffer
- Embedded watchdog
- 3.3 V - 5.5 V/ 25-35 mA
- 418.00 to 455.00 MHz
2.4 GHz Module
- Bluetooth® compatible
- Max 15 meter (Transmit Class 2)
- >1200 to 115200 baud
- QFSK modulation
- Auto reconnect
- Sensitivity: 80 dBm
- 1.8 V - 3.6 V I/O voltage
- 3.15 V - 3.3 V supply voltage
- 2.4 GHz on-board antenna
