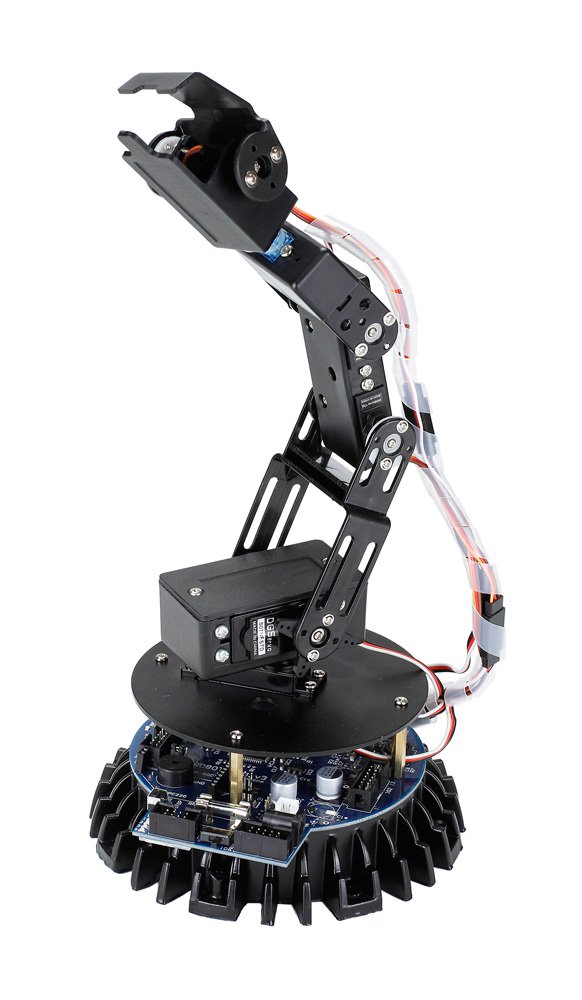

Global Specialties R680 Banshi Robotic Arm (Kit) C-Programmable
The Banshi Robotic Arm is an affordable robot for the hobbyist and educator. Because it's programmable and comes unassembled, it is ideally suited as a project to learn electronics, mechatronics, and computer programming. The Banshi is controlled by a powerful ATMEGA64 microcontroller that is programmable via open source tools in C. You can acutate the robot using the included keyboard or RACS software. Using the software you can record the movements of the Banshi and play them back.
Product Features
- Plastic arm and metal chassis
- Includes 12 VAC power adapter
- Download the sample programs or your own custom programs with the included USB programmer and RobotLoader software
- 6 degrees of freedom
- ATMEGA64 Processor
- Various available I/Os
- I2C Bus
- Control the robot arm with the included keyboard or RACS software
- Comes unassembled as a kit
- NO SOLDERING REQUIRED
Product Details
- CD comes with WinAVR, RobotLoader, and RACS software. Also complete 72-page manual and many sample programs
- Included 12V power adapter, assembly tools, keyboard controller, USB programmer interface & cable
- 6 Degrees of Freedom. Arm length 260mm; Height (fully extended) 340mm; Base diameter 150mm; Weight 1.3lbs
