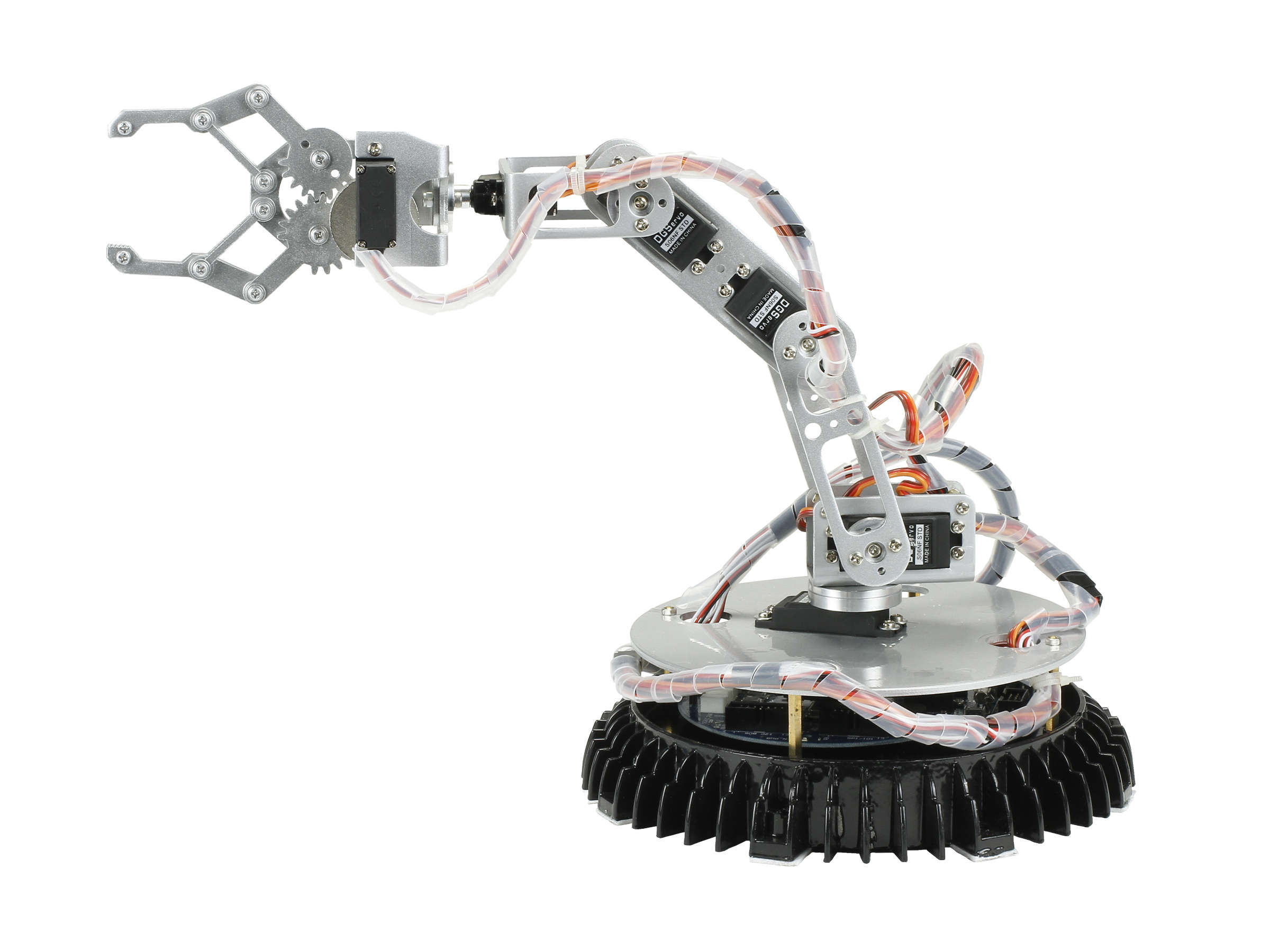

Global Specialties R700 Vector Robotic Arm C-Programmable
PRODUCT INFORMATION
The Vector Robotic Arm is a high quality robot made of heavy gage aluminum. It is ideally suited to learn the basics of electronics, mechanics and programming. The Vector is controlled by a powerful ATMEGA64 microcontroller that is programmable via open source tools in C. Control the robot using the included keyboard or RACS software. Using the software you can record the movements of the Vector and play them back.
Product Features
- Fully assembled heavy gauge aluminum robotic arm with 6 degrees of freedom and ATmega64 microprocessor
- Easily control the arm via computer or included keyboard; Using included RACS software you can record and play back the movements of the robot
- Expandable with I/Os and I2C bus; Wireless options available
- Comes with Robot Loader and WinAVR software; Easily download included sample programs or write your own custom code in C
- Includes R700 Vector Robotic Arm, software CD, 64-page manual, keyboard controller, USB interface and cables, and 12V DC power supply
Specifications
Processor Memory
64 kB flash ROM, 4 kB SRAM, 2 kB EEPROM
Speed
16 MIPS
Arm Length
355 mm
Height (arm straight up)
420 mm
Base Diameter
207 mm
Weight of Robot
2.6 lbs
