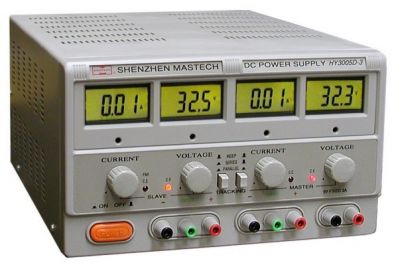

0-30VDC@ 0-3 AMP
5V @ 3AMP FIXED
- Triple output for 2X (0-30V@0-3)A, 1X( 5V@3A)
- Output polarity : positive and negative
- Low ripple voltage less than 1mVp-p
- Overload protection circuit
- With bright Back Light
- State of art design
Series and parallel operation available 2 X Output Voltage : 0- 30V @ 0-3A
The third independent 5V/3A regulated output 5V@3A.
Output Current :0-3 A
Input Voltage: 110V, 60Hz. (Or 220V, 50Hz. special order)
Constant Voltage/ Constant Current
Voltage and Current Variable
Power effect: CV<0.01%+1mV, CC<0.2% + 1mA
Overload effect: CV<0.01% +3mV, CC<0.2% +3mA
Waves and noises: CV<0.5mV r.m.s, CC 3mA, r.m.s
Protection: High current limited.
Ripple & Noise: <1mV rms( I>3A), CV<0.5mV rms( I < 3A)
Digital Voltage and current meters built in with Voltage resolution: 2.5% of display reading; 2.5% of Current resolution: display reading 2 years warranty
