The LWS line of student microscopes has everything necessary for the middle school or high school classroom. This is a proven design with student proof features such as locked-in eyepieces and a durable disk diaphragm. Clear DIN optics, coarse and fine focus, illumination and stage options make this scope a guaranteed winner. Included accessories: dust cover, one fuse, spare bulb manual and warranty card. Additionally, the new LED illumination options will ensure that the scope will last for years and enhance clarity in a great, economically priced microscope.

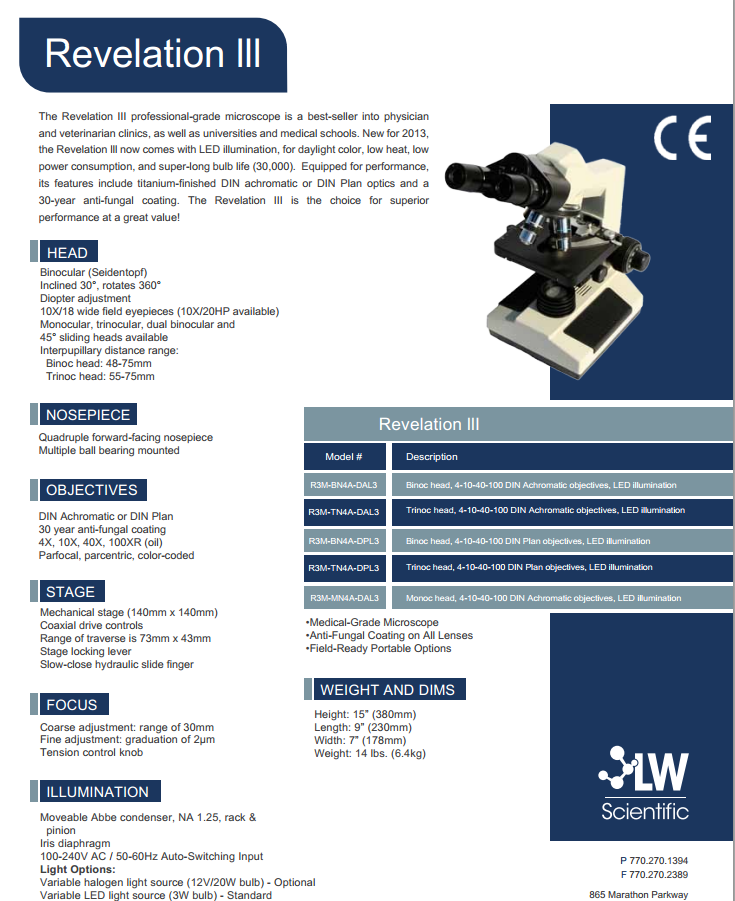

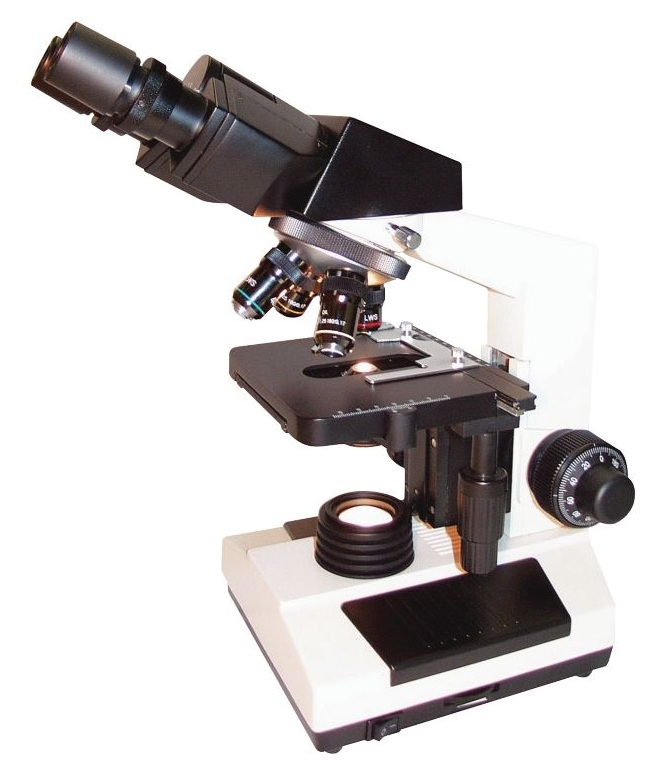

LW SCIENTIFIC R3M-TN4A-DAL3 Revelation lll Trinocular Microscope
The Revelation III trinocular laboratory microscope is ideal for academic, research, and professional setting. Standard halogen lighting, a mirror and attachment base are included for field use where electricity is unavailable.The DUAL-HEADED version of the Revelation III is perfect for those Dermatology Clinics looking for a microscope for performing MOHs and for diagnosing
The Revelation III professional-grade microscope is a best-seller into physician and veterinarian clinics, as well as universities and medical schools. Equipped for performance, its features include titanium-finished DIN achromatic or DIN Plan optics and a 30-year anti-fungal coating. Field ready portable options. 4x, 10x, 40x, 100x (oil) objectives. Medical Grade microscopes. Anti-fungal lenses. LED 3W light bulb. The Revelation lll now comes with LED illumination, for daylight color, low heat, low power consumption, and super-long bulb life (30,000).Microscope, Revelation-III, models size Height 15", Length 9", Width 7". Equipped for performance included accessories: three 0.5 amp fuses, mirror attachment (for field use), blue and green filters, dust cover, immersion oil, spare bulb, manual and 1 year warranty card.
HEAD
- Trinocular (Seidentopf)
- Inclined 30°, rotates 360°
- Diopter adjustment
- 10X/18 wide field eyepieces (10X/20HP available)
- Monocular, trinocular, dual binocular and 45° sliding heads available
- Interpupillary distance range:
Binoc head: 48-75mm
Trinoc head: 55-75mm
NOSEPIECE
- Quadruple forward-facing nosepiece
- Multiple ball bearing mounted
OBJECTIVES
- DIN Achromatic or DIN Plan
- 30 year anti-fungal coating
- 4X, 10X, 40X, 100XR (oil)
- Parfocal, parcentric, color-coded
STAGE
- Mechanical stage (140mm x 140mm)
- Coaxial drive controls
- Range of traverse is 73mm x 43mm
- Stage locking lever
- Slow-close hydraulic slide finger
FOCUS
- Coarse adjustment: range of 30mm
- Fine adjustment: graduation of 2μm
- Tension control knob
ILLUMINATION
- Moveable Abbe condenser, NA 1.25, rack & pinion
- Iris diaphragm
- 100-240V AC / 50-60Hz Auto-Switching Input
- Light Options:
Variable halogen light source (12V/20W bulb) - Optional
Variable LED light source (3W bulb) - Standard - Moveable Abbe condenser, NA 1.25, rack & pinion
- 110V/220V switchable electronics
- 12V DC battery input available
MANUFACTURER WARRANTY 1 YEAR
