The LWS line of student microscopes has everything necessary for the middle school or high school classroom. This is a proven design with student proof features such as locked-in eyepieces and a durable disk diaphragm. Clear DIN optics, coarse and fine focus, illumination and stage options make this scope a guaranteed winner. Included accessories: dust cover, one fuse, spare bulb manual and 1 YEAR warranty card. Additionally, the new LED illumination options will ensure that the scope will last for years and enhance clarity in a great, economically priced microscope.

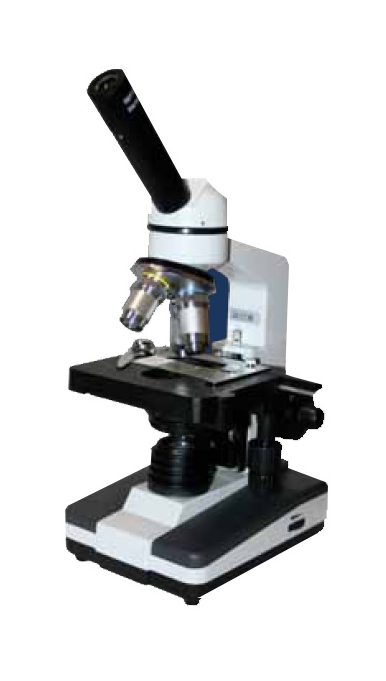

LW Scientific EDM-MM4A-DAL3 Student Pro Monocular - 4 Objectives
Taking the student scope to the next level – the Student Pro is ready for any teacher, student, or hobbyist that wants the “professional grade” in student scopes. With our proven design the Student Pro includes many of the advanced features you would find on any laboratory quality microscope – built in mechanical stage. Heavy cast alloy, all metal gearing, moveable 1.25 ABBE condenser, and clear DIN objectives.
Get accurate, clear results on a student-friendly scope without sacrificing the quality of observation with the Student Pro.
HEAD :
Standard monocular head
Bearing mounted, rotates 360°
10X/18 wide field eyepiece
Locked-in eyepiece with pointer installed
OBJECTIVES :
DIN Achromatic 4X, 10X, 40X (retractable)
Optional 100x oil objective
Parfocal and parcentric
Color coded
STAGE :
Built-in “true-mechanical stage”
Stage size: 124mm x 115mm
CONSTRUCTION :
Heavy cast alloy
Acid and reagent resistant finish
All metal gearing
ILLUMINATION :
Moveable NA 1.25 ABBE condenser
Iris Diaphragm
Variable LED base
Auto-switching 110-240V
ADJUSTMENT CONTROLS :
Coaxial coarse and fine focus
Adjustable stage stop
INCLUDES :
Blue and green filters
Filter holder
Dust cover
Spare bulb and fuse
DIMENSIONS AND WEIGHT :
Height: 14” (356mm)
Length: 6.5” (165.1mm)
Width: 5.25” (134mm)
Weight: 6.2 lbs. (2.8kg)
Built-in “True-Mechanical Stage”
Variable LED base
Coaxial Focus Knobs
1 YEAR WARRANTEE
