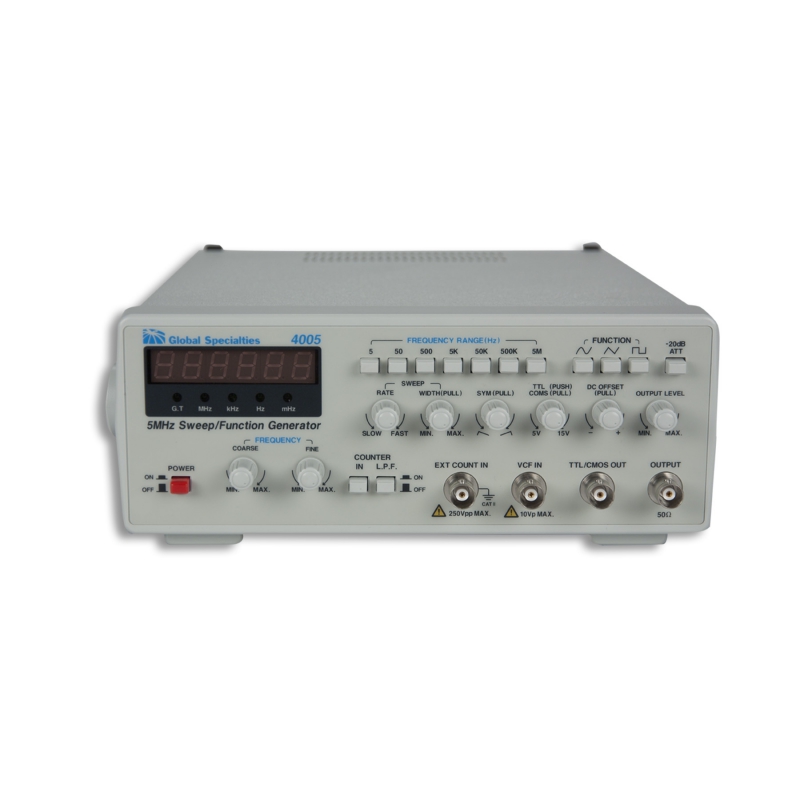

The 4005 is designed to be used as a FUNCTION GENERATOR, SWEEP GENERATOR, PULSE GENERATOR and a FREQUENCY COUNTER, offering a wide range of applications in both analog and digital electronics such as engineering, manufacturing, servicing, education and hobbyist fields.
Product Features
- 4 products in one
- Function generator, multiple waveforms
- Sweep generator, wide sweep range
- Pulse generator, great accuracy
- Frequency counter, 2Hz to 50Mhz with auto range
- 6 digit seven segment, eye pleasing green LED display
- Display indicates, gate time, MHz, KHz, Hz, mHz
Specifications
Waveforms
Sine, Square, Triangle, Skewed Sine, Pulse, Ramp Sawtooth, TTL/CMOS Leveled Square, DC
Frequency Range
0.05Hz to 5MHz in 7 Ranges (5, 50, 500, 5K, 50K, 500K, 5M)
Frequency Accuracy
± 2% (5, 50, 500, 5K, 50K, 500K, 5MHz Range, Full Scale)
Output Level
Sine & Tringle wave: 20 Vpp in open circuit, 10 Vpp into 50Load Square Wave: 19 Vpp in open circuit, 9.5 Vpp into 50 Load
Output Impedance
50±5%
Attenuator
-20 dB fixed and continuously variable (more than to20dB)
Sine wave
± 3dBto 5 MHz (more than 14Vpp)
Square wave
Less than 25 nS (at 5MHz)
Triangle wave
More than 99% at 0.5 Hz to 100 KHz
TTL Output
-Rise and Fall Time: Less than 30 nS (at 1MHz)
CMOS Output
-Rise and Fall Time : Less than 180 nS (at 1MHz)
DUTY RATIO
1:1 to 10:1
Mode
Linear
Width
Variable from 1:1 to 100:1
Rate
0.5 Hz to 50 Hz (20 mS to 2 S)
External VCF Input
Input Voltage: 0 to 10 V
Input Impedance
Approx. 1 K
Display
6 Digit Seven Segment to Green LED, Gate time, MHz, KHz, Hz and mHz.
Frequency Range
2Hz to 50 MHz with Auto Range.
Accuracy
±Time base Error ± 1 count
Time base
10 MHz Crystal Oscillator, ±20ppm
Input Sensitivity
200 mVrms (2Hz ~100Hz), 100mV rms (100Hz~50MHz)
Input Impedance
50
Max. Input Voltage
250 Vpp
Dimensions WHD
3.4 x 3.5 x 10.6" (240 x 90 x 270mm)
