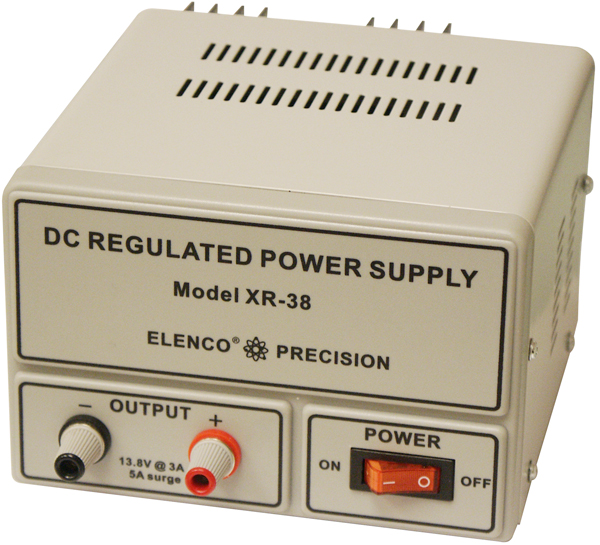

Elenco 13.8VDC, 3A Regulated Power supply # XR-38
The Model XR-38 has a regulated output of 13.8 volts @ 3A and capable of handing 5A surges up to 30 minutes. The XR-38 is designed to power automotive equipment such as CB radios, stereo systems, mobile two-way radios, and vehicular alarm systems when removed from the vehicle.
Specifications:
- Input Voltage 120VAC , 60Hz
- Output Voltage 13.8VDC
- Output Current 3A Continuous, 5A Surge
- Load Regulation Less Than 5%
- Ripple Less than 10mV rms
- Output Protection Thermal and Short
- Input Protection 2A, 250V Fuse
- Dimensions 4 5/16" (H) x 6 " (W) x 8 3/16" (D)
- Weight 5 lbs. 8 oz.
