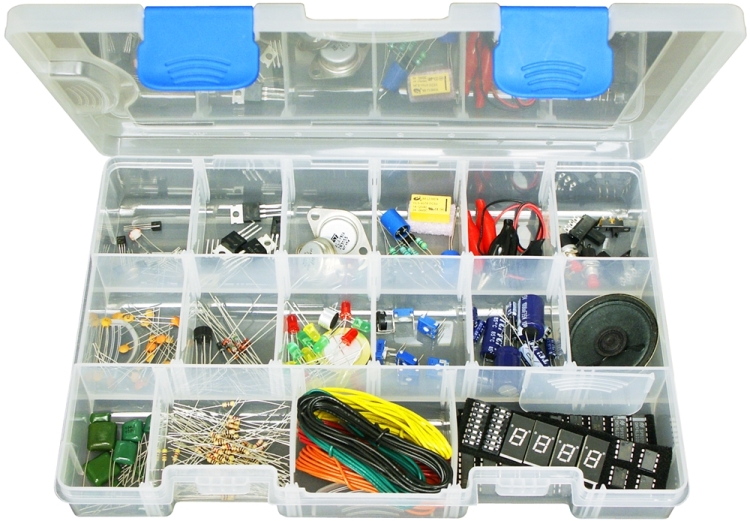

Hundreds of Basic Parts! Kit # CK-1000
1/4W Resistors, Electrolytic Capacitors, Mylar Capacitors, Ceramic Disc Capacitors, Inductors, Trimpots, Switches, LEDs, Displays, ICs Transistors and Diodes. Comes in the C900 Parts Storage case.
| Plastic Parts Container 11” x 7” x 1 1/2” - 18 divisions |
LEDs: Standard T 1 3/4 size - 5 each Red, Green, Yellow |
| Resistors: 1/4W - 5 each 10Ω, 100Ω, 470Ω, 1kΩ, 2.2kΩ, 4.7kΩ, 8.2kΩ, 10kΩ, 18kΩ, 27kΩ, 47kΩ, 82kΩ, 100kΩ, 220kΩ, 330kΩ, 470kΩ, 1MΩ |
Displays: 2 each 7-segment common cathode, 7-segment common anode |
| Electrolytic Capacitors: 50V Radial - 2 each 1µF, 4.7µF, 10µF, 47µF, 100µF, 470µF, 1000µF |
Integrated Circuits: 2 each 7805, 7812 Regulators, LM386 Audio Amp, 555 Timer, 741 Op-Amp, 74LS00, 74LS02, 74LS08, 74LS10, 74LS47, 74LS74, 74LS86, CD4013, CD4017 |
| Mylar Capacitors: 100V Radial DIP - 2 each .001µF, .0047µF, .01µF, .047µF, .1µF, .33µF |
Transistors: 2 each PN2222, PN2907, 2N3055, 2N3904, 2N3906,2N5457 |
| Ceramic Disc Capacitors: 500V - 2 each 2.2pF, 4.7pF, 10pF, 1pF, 22pF, 47pF, 100pF, 220pF, 470pF, 680pF |
Diodes: 2 each 1N4148, 1N4001, 1N34, 1N4728, 1N4733, 1N4739, 1N4743, 1N4747 |
| Inductors: 1 each 4.7µH, 10µH, 47µH, 100µH, 470µH, 1µH, 10µH, 33µH |
Miscellaneous: 25’ 22AWG Hook-up wire, Alligator lead sets (red and black), 5V DIP relay, Photo cell, Microphone, Speaker, Buzzer, 9V battery snap, 1.5A 100V bridge, 4A 200V SCR |
| Trimpots: Single Turn - 1 each 500Ω, 1kΩ, 5kΩ, 50kΩ, 100kΩ, 500kΩ, 1MΩ |
|
| Switches: 2 each Push-button, SPDT slide, DPDT slide, 8-position DIP |
