RF Generator
Model SG-9000
Model SG-9000 are stable high frequency generators capable of AM modulation. They are primarily designed for work on AM and FM radio receivers, but can be used in any project requiring a modulated RF signal.
Features: SG-9000
RF frequencies continuously variable 100kHz to 450MHz in six ranges.
Output RF voltage variable and has 20dB attenuator switch.
Internal AM modulation of 1kHz.
Audio 1kHz signal available at output.
External crystal locks oscillator to your frequency between 1-15MHz.
455kHz, 4.5MHz and 10.7MHz specially noted for easy setting.
Specifications: SG-9000
Frequency on 6 ranges 100kHz to 150MHz on harmonics):
Band A 100kHz - 300kHz
Band B 300kHz - 1000kHz
Band C 1MHz - 3.2MHz
Band D 3MHz - 10MHz
Band E 10MHz - 35MHz
Band F 32MHz - 150MHz
Harmonics 96MHz - 450MHz
Frequency Accuracy: (SG-9000)...............±3% Dial Accuracy
RF Output Approximate:..............100mV to 35MHz
Crystal Output.....1-15MHz uses HC 6/U holder (not included)
Output Attenuator:....Hi-Lo Sw with fine adjuster
Modulation Internal:...1kHz(AM) 30% approximate
Modulation External:...50Hz to 20 kHz at less than 1Vrms input
Audio Output:.......................1kHz at 2Vrms
Power:..............120V/220V, 50/60Hz
Size:..........................6" (H) x 10" (W) x 5 1/4" (D)
Weight:.......................5lbs. 8oz.Accessories: Detachable line cord, BNC to insulated clip output cable, instruction manual.

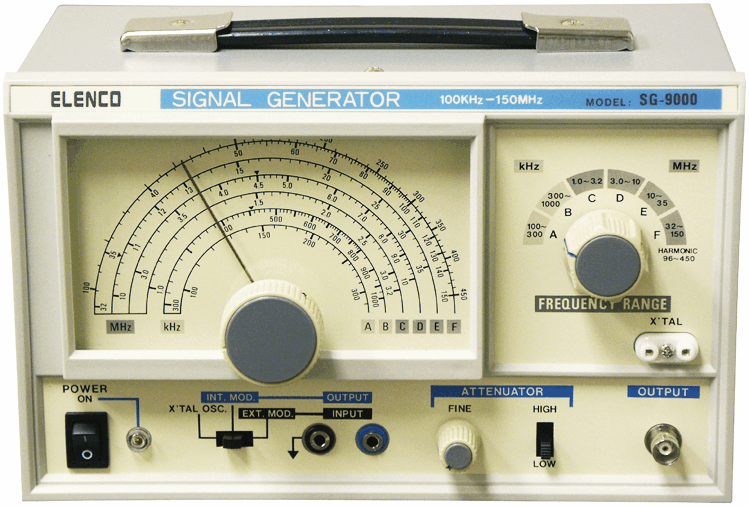

Elenco SG-9000 Wide Band 100kHz to 450MHz RF Signal Generator
