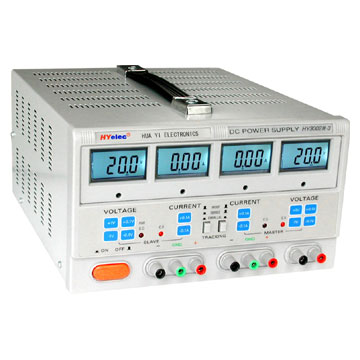

MASTECH HY3005M-3 Triple DC Power Supply with Microprocessor Control

SKU: HY3005M-3
Stock: -1

Price: 0.00

$249.95

Qty: - +

0 Review(s)

Specifications:
1) Model (output voltage & output current):
a) HY3005M-3 (2 x 0-30V, 2 x 0-5A,5V/3 AMP FIXED OUTPUT)
2) Display type: 4 LED
3) Input voltage: 104 to 127V AC (60Hz), or 207 to 253V AC (50Hz)
4) Ripple and noise: CV 0.5mVrms
5) Protection: current restricted protection, short-circuit and reverse polarity
protection
6) Output type: triple output, dual output with fixed 5V/3A
7) The dual output can be connected in parallel or series, series voltage or parallel
current is the sum value of dual output
8) Dimensions: 365 x 265 x 164mm
